This is a special device with a lot of special functions to inspect the Power Quality of your Electrical Installation, it can analyze and display waveforms distortion caused by i.e. Variable Speed Drives
These inspections can detect Faults in the Installation which on long term will cost you a much higher energy bill or early replacements of transformers and/or electric motors as these motors will have reduced mechanical power on the Axis which again will increase the motor current and raise the temperature of your motor cables and MCC’s.
All readings are stored in the Database available in this Power Analyzer to be able to export for usage in the EC Inspection Report presented to the Client.

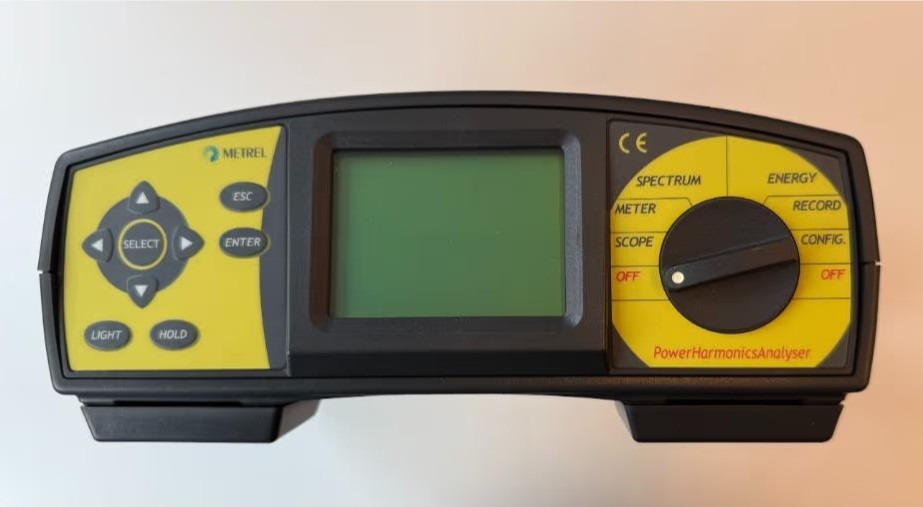

With the Metrel MI 2092 Power Harmonics Analyser Power Harmonics Analyser EC can measure:
- Comprehensive real time monitoring, recording and analysis of 3-phase power systems.
- Wide range of functions:
- True rms Voltage,
- True rms Current,
- Power (Watt, var and VA),
- Power Factor,
- Energy,
- Power Scope
- Harmonic Analysis.
- Monitoring of Voltage and power supply interruptions with analysis of recorded data.
- In recording mode, measured values are stored in memory for later analysis.
- Minimum, average & maximum value calculations for recorded quantities, with various pre-formatted reports.
- Oscilloscope mode for displaying waveforms, both in real time and for stored waveform analysis.
- Harmonic distortion analysis up to 63 rd harmonic, both on line and on recorded data.
- Energy monitoring and analysis.
- Windows software for data analysis and instrument control.
